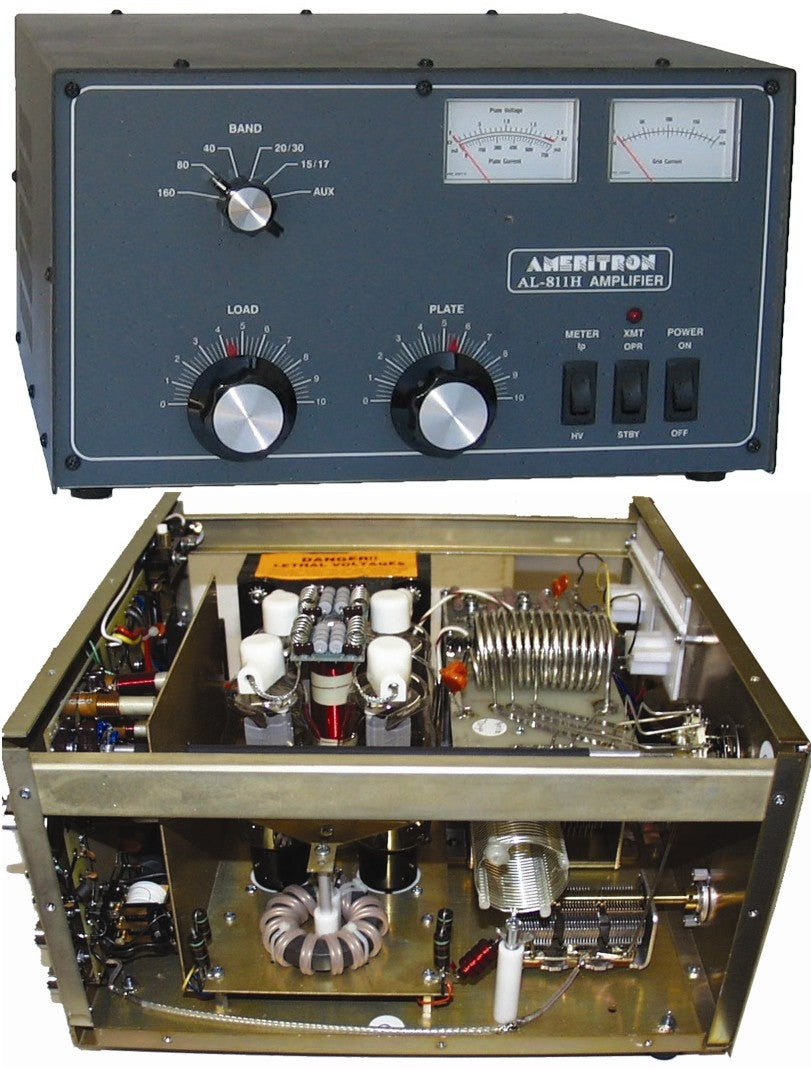

AL-811H,SEC- HFAMP, 800W, (4)811A TUBES,US120VAC (FACTORY SEC)

Only the AMERITRON AL-811H gives you four fully neutralized 811A transmitting tubes. You get absolute stability and superb performance on higher bands that canÂ’t be matched by un-neutralized tubes. You also get efficient full-size heavy duty tank coils, computer grade capacitors, heavy duty high silicon core power transformer, slug tuned input coils, operate/standby switch, transmit LED, ALC, dual meters, QSK compatibility with QSK-5 option and much more!

SPECIFICATIONS: •

• Output power: 800 Watts PEP, 600 Watts CW. •
• All Band Operation: Covers 160-15 Meters including WARC bands. Can be user modified for12 and 10 Meters. •
• Four 811A Tubes: Uses four rugged, fully neutralized low cost 811A PA tubes. • Vertical Tube Mounting: Prevents shorting of tube filament/grid, prolongs tube life. •
• Fully Neutralized: Improves stability and performance on higher bands. •
• Input Tune Circuit: Adjustable rear panel slug tuned input circuit. •
• ALC Control: Built-in adjustable ALC control. •
• Vernier Reduction Drives: Tuning and loading reduction drives make tuning smooth and easy. •
• Dual Illuminated Meters: Monitor vital operating functions. •
• Heavy Duty Power Supply: 17 pounds, high silicone steel core transformer and computer grade filter capacitor gives 1700 Volts high voltage at no load and 1500 Volts at full load. Multi-Voltage Operation: User selectable for 100/110/120/210/220/230 VAC operation. Shipped with transformer installed and wired for 120 VAC for domestic model or 240 VAC for export model. •
• Air-Cooled: Quiet pressurized ventilation keeps tubes safely cooled. QSK Compatible: Optional external electronic pin diode Transmit/Receive switch. QSK-5 •
• Attractive Lexan front decal •
• One Year AMERITRON warranty. •
• Dimensions: 8 ¼" x 13 ¾" x 15 ½". •
• Operating Weight: 32 lbs. •
• Made in USA
