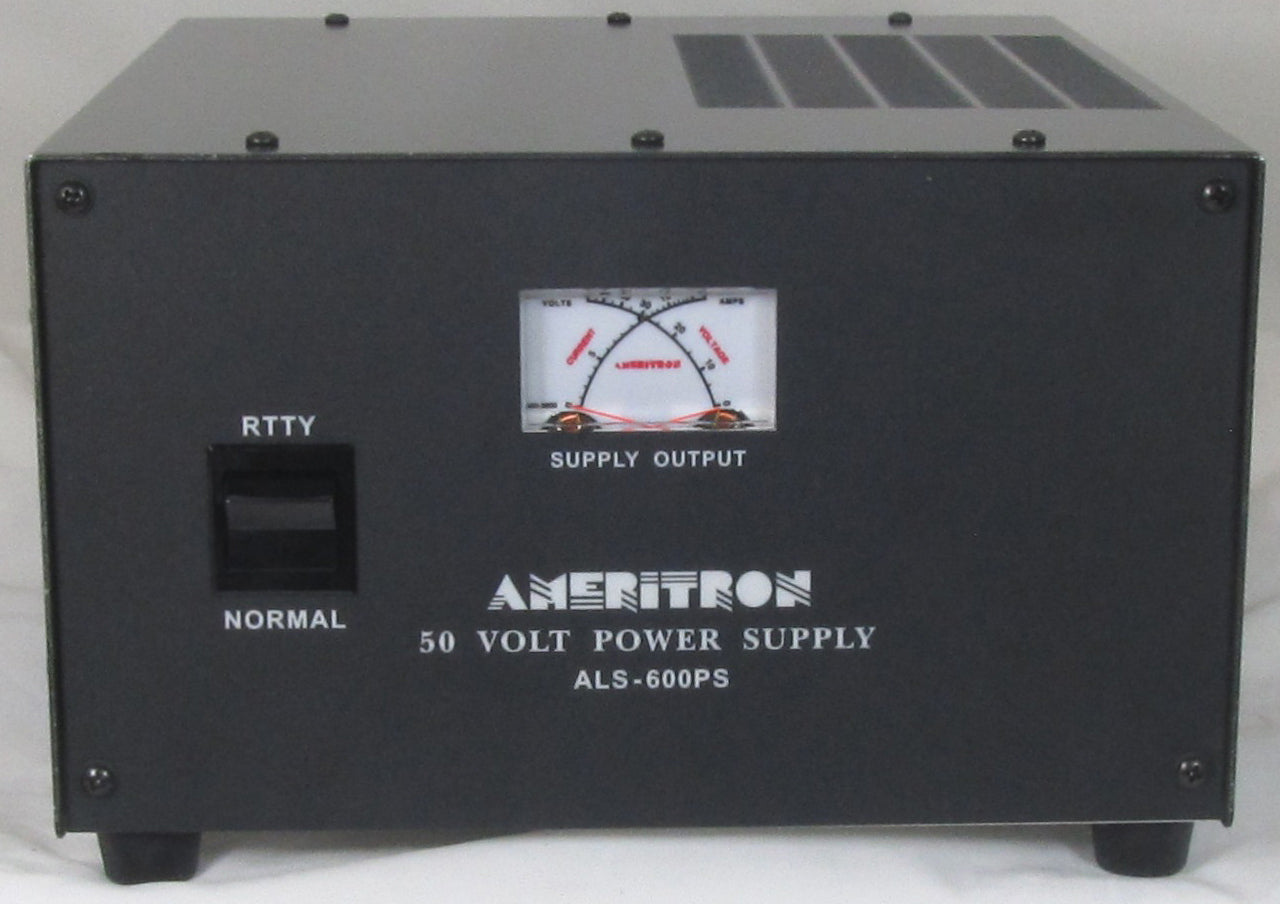

ALS-600PS, LINEAR POWER SUPPLY FOR 600 Watt ALS and other solid state amplifiers

50 VDC Linear Power Supply for Ameritron 600 Watt ALS and other solid state amplifiers

ALS-600PS, $999.95, Heavy Duty Linear Power Supply features: •Massive choke input filter greatly improves voltage regulation and reduces peak AC line current

• AMERITRON’s exclusive Multi-Voltage Power Transformer lets you compensate for stressful high line voltage and performance robbing low line voltage
• Step-Start Inrush ProtectionTM stops damaging inrush currents and extends the life of your power supply components
• Illuminated Cross-Needle Meter monitors voltage and current of 50 VDC line.
• Extremely quiet fan • Very compact 91/2Wx61/2Hx12D inches -- can be placed conveniently out of the way
• Wired for 120 VAC, supplies 50 VDC at 25 Amps to ALS-600 amplifier
• Also use on 100-130 VAC and 220-250 VAC, 50/60 Hz
• Draws less than 12 Amps at 100 VAC and less than 6 Amps at 230 VAC
• Includes prewired cable to plug into Ameritron ALS amplifiers

ALS-600PS Power Supply Specifications:
Line Input: 120 VAC/240 VAC.

Output: 50 VDC, 25 Amps, +/-14 VDC, 1 Amp.

Metering: Cross-needle for volt/amp.
Output Cable: 6 foot prewired cable with Beau multi-contact connector to mate with ALS-600 amplifier.

Dimensions: 9 1/2W x 6 1/2H x 12D inches.

Operating Weight: 32 lbs.*

Shipping Weight: 37 lbs.*

AC Line Connector: NEMA-5-15P.
