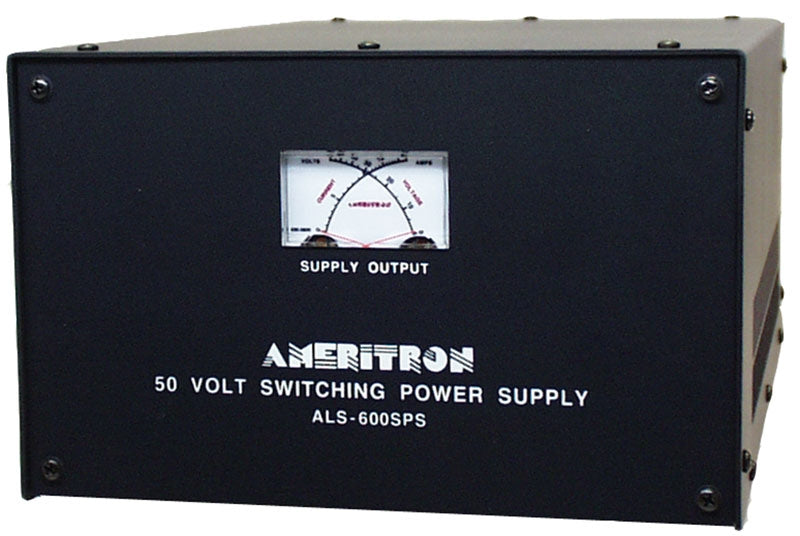

ALS-600SPS, SWITCHING POWER SUPPLY for 600 Watt ALS Amplifiers and other solid state Amplifiers
Out of stock
50 VDC Switching Power Supply for Ameritron 600 Watt ALS and other solid state amplifiers
The ALS-600SPS is a light weight switching power supply to use with the ALS-600 amplifier. The switching supply weighs 3 times less than the choke type power supply. The specially designed switching and filter circuit makes this power supply hash free.
The ALS-600SPS has a terminal strip where the AC voltage can be 120 or 240 50/60 Hz. The power supply will safely operate from 90-130 VAC in the 120 VAC position and 185-260 in the 240 VAC position.
- Line Input: 120/240 VAC 50/60 Hz
- Output: 50 Vdc 25 Amps +- 14 Vdc 1 Amp.
- Metering: Cross Needle Volts / Amp.
- Output Cable: Beau multi-connector with 6 foot cord to mate the ALS-600 amplifier
- AC line: NEMA 5-15P connector
- Dimensions: 9" x 6" x 14"
- Operating Weight: 10 lbs.
| ALS-600 Variants | |
|---|---|
| Base Model w/ 50V Power Supply - ALS-600 | Base Model w/ Switching Power Supply - ALS-600S |
| 220V Export Model w/ 50V Power Supply - ALS-600X | 220V Export Model w/ Switching Power Supply - ALS-600SX |
| 110V Export Model w/ 50V Power Supply - ALS-600Y | Switching Power Supply Only (No Amp) - ALS-600SPS |
Product Manuals
Download Product ManualCouldn't load pickup availability
