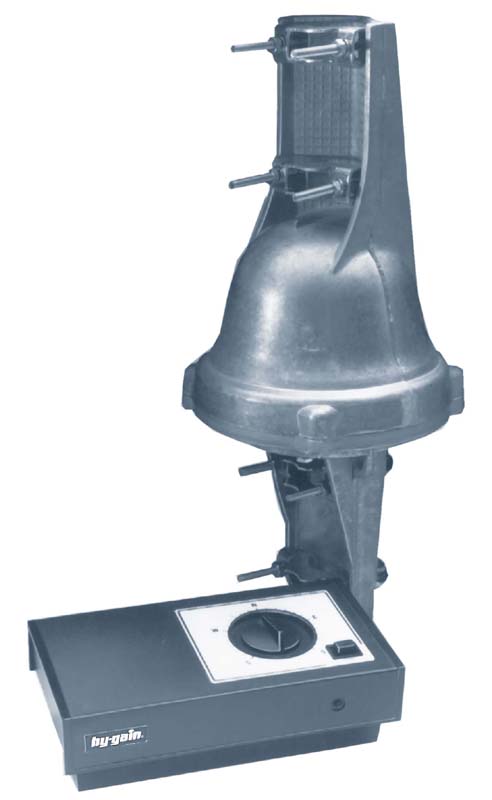

AR-40X, ROTATOR, FM-TV-COMPACT ARRAY, 3 SF WL, 220 V
Out of stock
The AR-40X is for large FM-TV and compact communication antenna arrays up to 3 square feet wind load area. Dual 12 ball bearing race is exclusive to its class. Automatic position sensor never needs resetting.
Fully automatic control -- just dial and touch for any desired location. Solid state, low voltage control, safe and silent operation. It has a maximum mast size of 2 1/16 inches. Includes MSLD light duty lower mast support. Operates at 220V.
| AR-40X Rotator Specifications | |
| Wind Load Capacity (inside tower) | 3.0 square feet |
| Wind Load (w/ Mast Adapter) | 1.5 square feet |
| Turning Power | 350 pounds |
| Brake Power | 450 pounds |
| Brake Construction | Disc Brake |
| Bearing Assembly | Dual race/12 ball bearings |
| Mounting Hardware | Plated clamps/steel bolts |
| Control Cable Conductors | 5 |
| Shipping Weight | 14 pounds |
| Effective Movement (in tower) | 300 ft/lbs. |
