ARF-500K, REMOTE KIT, 500M, SN#13048,BELOW
Out of stock

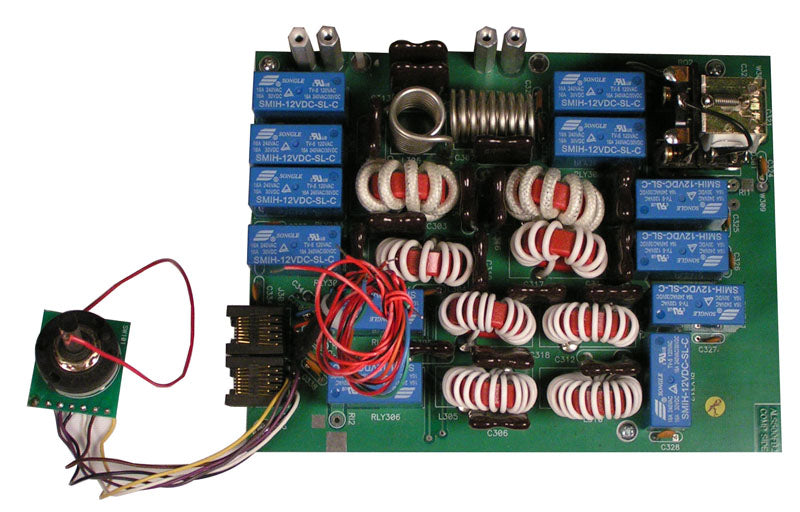

The Ameritron ARF-500K is a filtering circuit that allows the ALS-500M to be used with the ALS-500RC (remote head). The ARF-500K is design to be used with Ameritron ALS-500M with serial number 13049 or less. Current production model with serial number above 13049Â is already compatible for the ALS-500 Remote Head.
The ALS-500 Remote Head allows the amplifier to be placed away from the operating station and still have access of the front panel controls. The Remote Head has a Frequency Select Switch, ON/OFF Switch, Relay control jack, Current Meter, and three LEDs for TX, O/L and Power.
The ALS-500M will still have front panel controls (ON/OFF, Frequency Select, and Thermal overload, Load fault indicators), along with remote capability after the new filter circuit is installed.
| Ameritron AL-500M Variants | ||
|---|---|---|
| Base Model | Includes Remote Head ALS-500RC | |
| 120V | AL-500M | AL-500MR |
| Export 240V | AL-500MX | AL-500MRX |
| Export 240V CE certified | AL-500MXCE | AL-500MRXCE |
Product Manuals
Download Product ManualCouldn't load pickup availability
