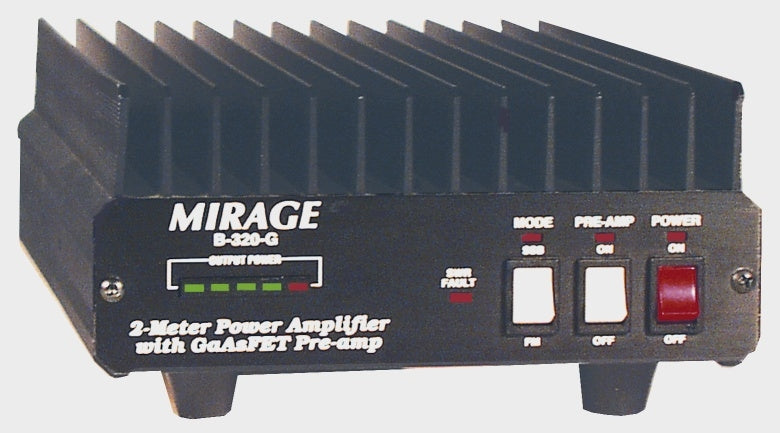

B-320-G, VHF, HT/MOBLE AMP, 200W OUT, 144-148 MHz
Out of stock
Add this amp to your 2 Meter HTor mobile radio and get 200 Watts brutal output. Talk further, longer, clearer!
Has 15 dB GaAsFET preamp, works all modes FM/SSB/ CW. Fully protected by high SWR protection. Includes mobile mounting bracket. An input level switch selects proper input power from your HTor mobile radio. Low power input for hand-held radios, 250 mW to 10 Watts. 1/4 Watts in gives 132 Watts output. 3 Watts input from your HTgives full power output.
High power input for mobile radios, 10 Watts to 50 Watts. 10 Watts input gives 95 Watts output. 50 Watts input gives full power output.
Custom wrap-around heatsink gives excellent heat dissipation.
Superb Mirage Warranty
Input Power Range: .25-50. I (MAX) at 13.8 Volts: 25. Weight in Pounds: 5. Size WxHxD in inches: 7.75x2.75x9.75. PreAmp Gain: 15 dB. Typical Power Out for Watts in (HT): .25: 132. 0.5: 165. 1: 175. 2: 190. 3: 200. Typical Power Out for Watts in (Mobile): .25: 1.5. 0.5: 4. 1: 10. 2: 24. 3: 32. 5: 48. 6: 64. 8: 82. 10: 95. 15: 135. 20: 148. 25: 165. 35: 186. 50: 200.
| MIRAGE B-320-G - 2-Meters with HT or Transceiver - Typical Power Curve | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Watts In | 0.25 | 0.5 | 3 | 10 | 25 | 35 | 40 | 50 | ||
| B-320-G Watts Out (Mobile Amp) | 1.5 | 4 | 32 | 95 | 165 | 186 | 193 | 200 | ||
| B-320-G Watts Out (HT Amp) | 132 | 165 | 200 | - | - | - | - | - | ||
