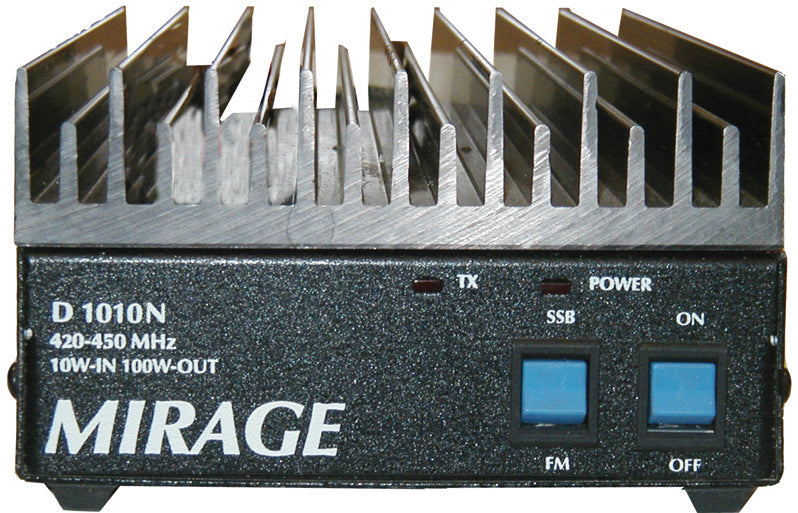

D-1010-N, UHF AMP,10W IN-100W OUT,430-450 MHz
Out of stock
- 10 Watts in - 100 Watts Out
- 430-450 MHz
- SSB/FM
- Can be modified
- for ATV Service
- 300 mW to 15 Watts
- 10 Watts in 100 Watts Out
- 20 Amps
- 12" x 3" x 5.5"
- 6 lbs.
All UHF models feature all modes: FM, SSB, CW, adjustable delay for SSB and remote control outlet. They also have a heavy duty heatsink that spans entire length of cabinet, 50 Ohm impedance input and output, 13.8 VDC voltage.    D-3010-N - 100 W out / 30W in. For 5 to 45 Watt mobile/base. D-1010-N - 100 W out / 10W in. For handhelds or mobile/base. D-26-N - 60 W out / 2 W in, for HTs.
| MIRAGE 420-450 MHz Amplifiers | |||
|---|---|---|---|
| Model | Input Power | Output Power | Current |
| D-15-N | .25-2 W | 3-18 W | 3 A |
| D-26-N | .4-5 W | 17-60 W | 12 A |
| D-1010-N | .30-15 W | 5-110 W | 20 A |
| D-3010-N | 5-45 W | 7-100 W | 20 A |
Product Manuals
Download Product ManualCouldn't load pickup availability
