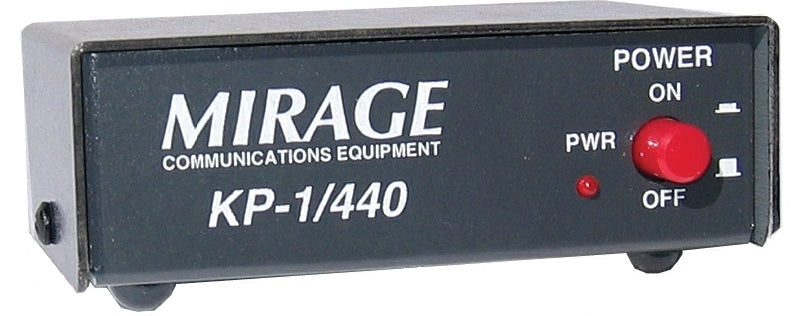

KP-1/440, PRE-AMP, 70-CM IN SHACK, 430-450MHz

High gain ultra low noise GaAsFET preamps for receiving weak signals. Select-able gain prevents receiver intermod. 15-22 dB gain. Auto RF switching to 160W. Choose In-shack or Mast-Mount models).

Model	Frequency
Model KP-1 In-Shack Models
KP-1/10M	28-30 Mhz
KP-1/6M	50-54 MHz
KP-1/2M	144-148 Mhz
KP-1/220	220-225 MHz
KP-1/440	430-450 MHz
Model KP-2 Mast Mount Models
KP-2/10M	28-30 Mhz
KP-2/6M	50-54 MHz
KP-2/2M	144-148 Mhz
KP-2/220	220-225 MHz
KP-2/440	430-450 MHz

In-Shack Model Features: • Automatic RF Switching • GaAsFET boosts weak receive signals • In-Line design for easy operation • High or Low switchable gain setting • Gain: from 15 dB to greater than 25 dB • Noise: less than 1 dB • Power Handling: 100 Watts • Size: 4 1/4" W x 2 5/16" H x 1 3/16" D

Mast Mount Model Features: • Automatic RF Switching • GaAsFET boosts weak receive signals • Mast Mounted design to reduce loss • In-Line design for easy operation • High or Low switchable gain setting • Gain: from 15 dB to greater than 25 dB • Noise: less than 1 dB • Power Handling: 100 Watts • Voltage: 12-15 VDC • Size: 4 1/4" W x 2 5/16" H x 1 3/16" D

Product Manuals

Download Product Manual
