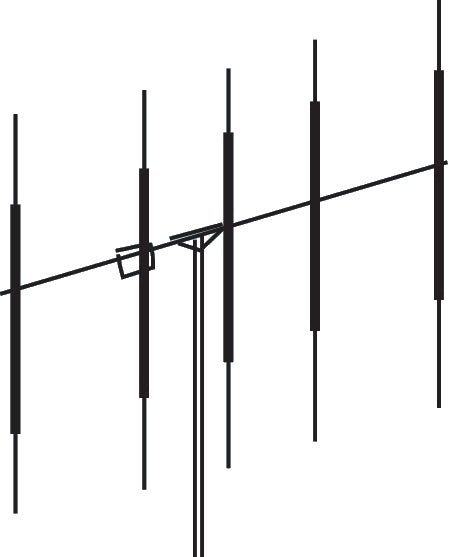

LJ-115, 10/12M LONG JOHN MONO BANDER, 5 ELE BEAM

The Hygain LJ-115 is a five element 10/12 Meter beam antenna designed to give maximum performance. It has a whopping forward gain of 9.7 dB and a great front-to-back ratio of 25 dB. LJ-115 is constructed of the best quality aluminum tubing and uses a new swaged (tapered) design for maximum strength and lightest weight. It boasts an 80 MPH wind survivability. This powerful beam features Hy’Gain’s exclusive Beta-Match™ system which matches the antenna to a 50 Ohm feedline and puts the driven element at DC ground for noise-free operation and lightning protection. LJ-115 is easily rotated with a Hygain rotator for 360 degree coverage.

See popular Hygain models AR-40 and CD-45II. Feed this antenna with any standard 52 Ohm coaxial cable. Expect a 1.05:1 SWR at resonance if the antenna is mounted in the clear and care is taken in attaching the feedline. The SWR will remain below 1.5:1 over the entire 10 Meter frequency range.

Also available is the smaller 3 beam LJ-113
