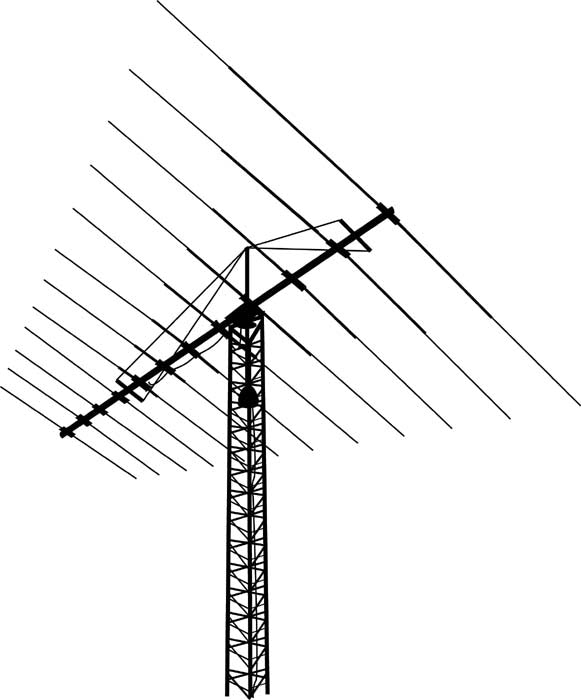

LP-1009A, HF LOG PERIODIC, 10/12/15/17/20M

This log periodic antenna covers the complete 13-30 MHz HF spectrum under a 2:1 VSWR. Built to commercial specifications, it is used by MARS, monitoring stations, marine and government radio stations around the world and now its available to Hy-Gain amateur customers. The discerning ham operator will appreciate its performance and ease of use. Just imagine all that spectrum coverage and only one feedline. wind survivability of 103 mph and the exclusive 2KW BN-4000 current type balun are typical of this antennas capabilities. It can be turned with the T2X Tailtwister or HDR-300A rotators.
For UHF connectors.

Antenna Specifications
	LP-1009A	LP-1009AN	LP-1010A	LP-1010AN
Gain	7.3 dBi	7.3 dBi	7.0 dBi	7.0 dBi
F/B Max	22 dB	22 dB	22 dB	22 dB
Max Power	1500 W PEP	1500 W PEP	1500 W PEP	1500 W PEP
Boom Size	27 ft.	27 ft.	36 ft.	36 ft.
Element Size	39 ft.	39 ft.	48 ft.	48 ft.
Turn Radius	22.5 ft.	22.5 ft.	28.5 ft.	28.5 ft.
Mast Diameter	1.9-2.5 in.	1.9-2.5 in.	1.9-2.5 in.	1.9-2.5 in.
Surface	12.5 ft2	12.5 ft2	16 ft2	16 ft2
Max Wind	103 mph	103 mph	93 mph	93 mph
Connector type	UHF	"N"	UHF	"N"
