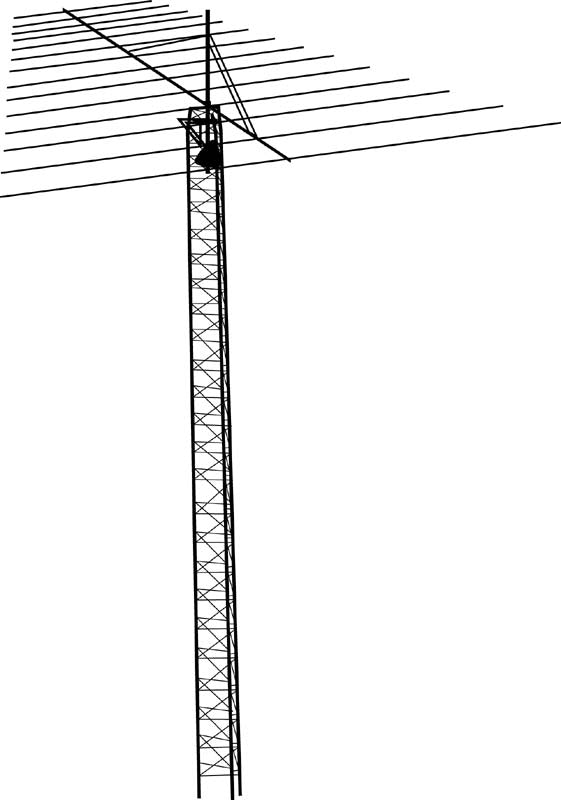

LP-1010AN, HF LOG PERIODIC, 10/12/15/17/20/30 M, N

There are only a few antennas that offer as much HF frequency coverage as the LP-1010A. You get six HF amateur bands. Like the LP-1009A, this antenna is built to commercial standards using stainless steel hardware and having a wind survivability of 93 mph. It can be turned with the T2X Tailtwister or HDR-300A rotators.
For "N" Connector.

Antenna Specifications
	LP-1009A	LP-1009AN	LP-1010A	LP-1010AN
Gain	7.3 dBi	7.3 dBi	7.0 dBi	7.0 dBi
F/B Max	22 dB	22 dB	22 dB	22 dB
Max Power	1500 W PEP	1500 W PEP	1500 W PEP	1500 W PEP
Boom Size	27 ft.	27 ft.	36 ft.	36 ft.
Element Size	39 ft.	39 ft.	48 ft.	48 ft.
Turn Radius	22.5 ft.	22.5 ft.	28.5 ft.	28.5 ft.
Mast Diameter	1.9-2.5 in.	1.9-2.5 in.	1.9-2.5 in.	1.9-2.5 in.
Surface	12.5 ft2	12.5 ft2	16 ft2	16 ft2
Max Wind	103 mph	103 mph	93 mph	93 mph
Connector type	UHF	"N"	UHF	"N"
