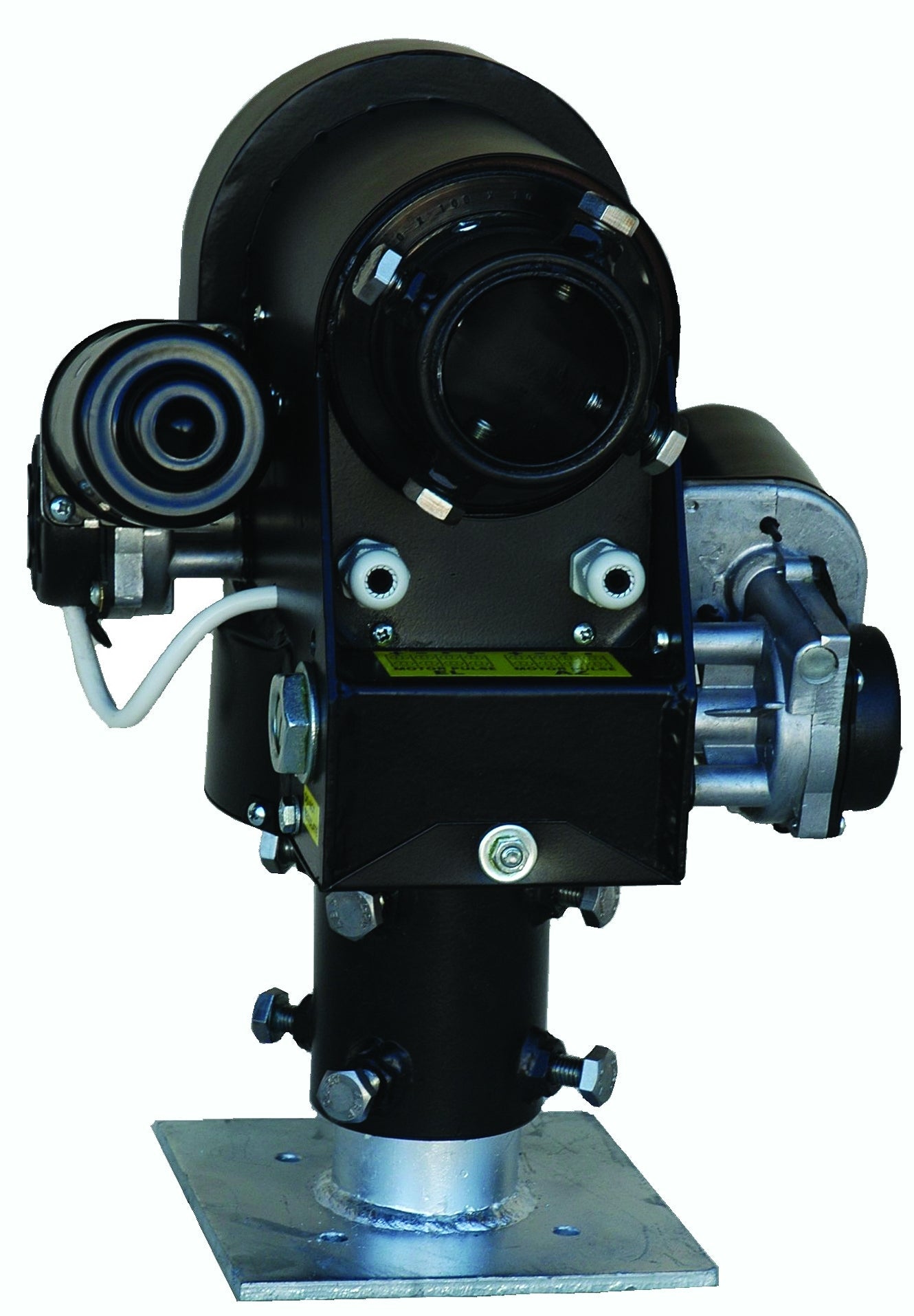

RAS-1, RAS, AZ/EL ROT W/DIGITAL USB CNTR., 30 SF
Out of stock
Azimuth-Elevation Rotators super heavy-duty Azimuth-Elevation Rotators Includes RAS-2C Controller.
| RAS-1 Specs | RAS-1 @ 12 V | RAS-1 @ 18 V | RAS-1 @ 24 V |
| Wind Load Area | Approx. 30 square feet | Approx. 30 square feet | Approx. 30 square feet |
| Turning Torque in-lbs | 1400 in-lbs. | 1800 in-lbs. | 3240 in-lbs. |
| Brake Torque, in-lbs. | 14,000 in-lbs | 14,000 in-lbs | 14,000 in-lbs |
| Brake Construction | Double Worm Gears | Double Worm Gears | Double Worm Gears |
| Vertical Load | 550 lbs. | 550 lbs. | 550 lbs. |
| Rotation Speed (360 degrees) | 120 Seconds | 90 Seconds | 60 Seconds |
| Precision, Rotator Weight | 1 degree, 29 lbs. | 1 degree, 29 lbs. | 1 degree, 29 lbs. |
| Rotation Range (Azi/Elev.) | 360/180 degrees | 360/180 degrees | 360/180 degrees |
| Position Sensor | Reed Switch | Reed Switch | Reed Switch |
| Mast size Bottom/Elevation | 2.6 bottom/2.0 elevation | 2.6 bottom/2.0 elevation | 2.6 bottom/2.0 elevation |
Product Manuals
