SPT-500, VERTICAL, 10/12, PENETRATOR, 1.5kW
Out of stock

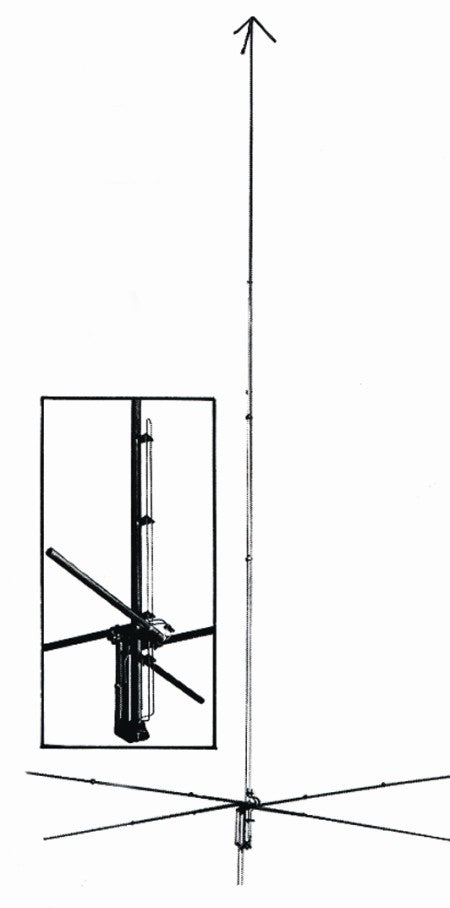

This fantastic true full-size 5/8 Wave 10 / 12 Meter vertical antenna from Hy-Gain was a legend in the 70’s . . . now it’s back to prove its legendary status once again! A Full-size radiator with lower radiation angle concentrates power closer to the ground, where you want it. Measures 22 foot, 9.5 inches. Larger diameter, heavy wall ply-tubular construction makes the new Super-Penetrator the absolute top omnidirectional antenna around! Four full-length radials and special machine-formed brackets give extra talk-power and overall strength. Electrical performance has been increased to a new standard by the use of a longer radiator and double-matching tuning with linear phasing techniques that provide low SWR and more radiated energy. The double-matching also provides a DC path to ground to drain off precipitation static, giving an extremely low noise antenna capable of high power. SPT-500 is specifically designed to accept AM-FM-SSB-DSB signals with low loss. Handles 1.5 killowatts. This antenna is illegal for 11 Meters use.
| SPT-500 Antenna Specifications | |
|---|---|
| Gain (dB) | 5.3 dB |
| SWR (at resonance) | Less than 1.2:1 |
| Nominal input impedance | 52 Ohms |
| Lightning Protection | DC Ground |
| Height | Twenty-two feet, six inches |
| Radial Length | Eight feet nine inches |
| Wind (Survival) | 80 MPH |
| Accepted mast size | 1 ¼” to 1 ⅝” OD |
