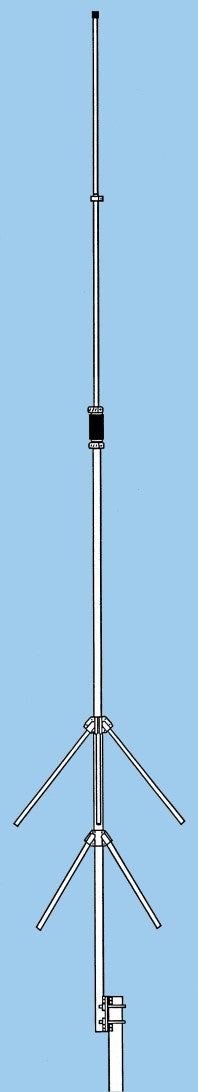

V-2R, COLLINEAR 2M VERTICAL 138 175 MHz SO-239 3 DBD

Covers 138-175 MHz 2 Meter vertical with 5.2 dBi gain derived from the famous extended double zepp antenna design. Radiating elements are two collinear ⅝ waves fed in phase. 2 sets of ¼ wave radials properly decouple lower radiator from the mast. SO-239, handles 500 Watts. 9 ft.

Model	Frequency	Gain	Input Power	Wind	Max Mast	Height	Weight
V-2R	138-175	5.2 dBi	500 Watts	105 mph	2 in. OD	9 foot	6 pounds
V-42R	143-153,	7.2 UHF dBi	200 Watts	100 mph	2 in. OD	9 foot	6 pounds
	436-455	5.2 VHF dbi	continuous
V-4R	400-475	5,2 dBi	500 Watts	130 mph	2 in. OD	4 foot	4 pounds
V-3R	216-225	5.2 dBi	500 Watts	100 mph	2 in. OD	6 ft. 9 in.	5 pounds
V-6R	51-54	5.2 dBi	500 Watts	80 mph	1.5-2.25	25 ft. 3 in.	15 pounds
