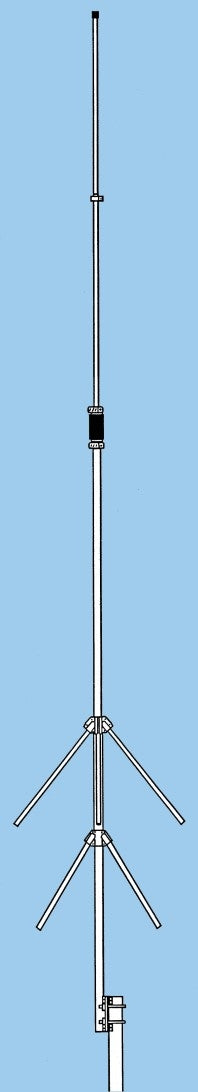

V-6R, COLLINEAR 5/8 WAVE VERTICAL 51-54 MHz 3DBD

The V-6R antenna is based on 2 collinear ⅝ wave radiators. 500 Watt enclosed coil and 2 sets of ¼ wave radials which provide complete mast decoupling and optimum pattern and gain. Rugged design withstands severe weather, also DC ground lightning protector. 25 feet 3 inches, HF female connector. Handles 500 Watts.

Model	Frequency	Gain	Input Power	Wind	Max Mast	Height	Weight
V-2R	138-175	5.2 dBi	500 Watts	105 mph	2 in. OD	9 foot	6 pounds
V-42R	143-153,	7.2 UHF dBi	200 Watts	100 mph	2 in. OD	9 foot	6 pounds
	436-455	5.2 VHF dbi	continuous
V-4R	400-475	5,2 dBi	500 Watts	130 mph	2 in. OD	4 foot	4 pounds
V-3R	216-225	5.2 dBi	500 Watts	100 mph	2 in. OD	6 ft. 9 in.	5 pounds
V-6R	51-54	5.2 dBi	500 Watts	80 mph	1.5-2.25	25 ft. 3 in.	15 pounds
